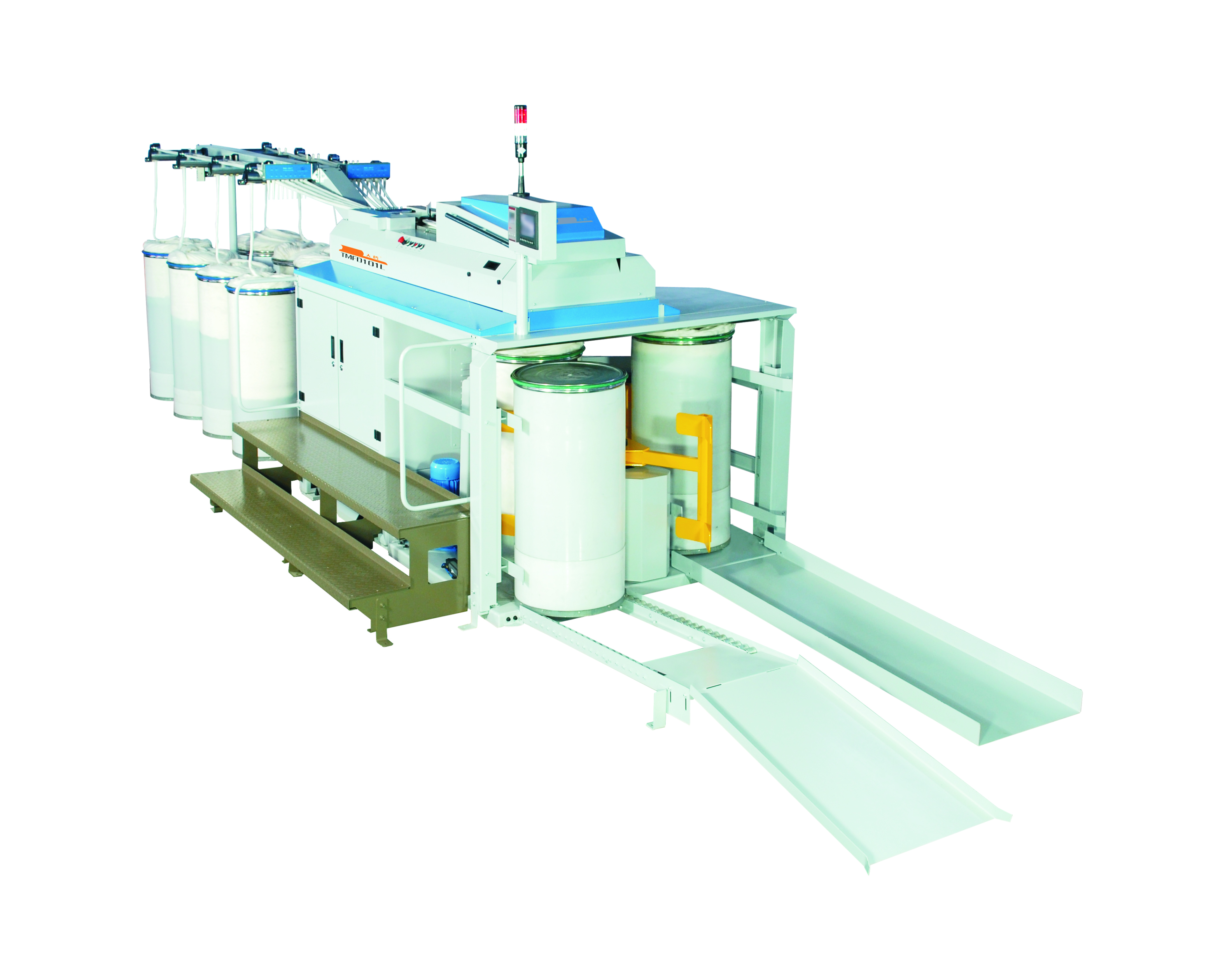

Salient Features:
1.Complete modular designs, convenient for configuration and upgrade.
2.3 over 3 draft system with upholding pressure bar and guiding top roller.
3.Operating cover and middle cover can be independently opened, easily operate.
4.Digital synchronous control, high driving accuracy.
5.Low rotational inertial design, fast dynamic response, easy for precise motion control.
6.Brand-new T/G roller construction with high measuring accuracy; Needn’t change T/G roller when feeding weight is changed.
7.Reliable automatic sliver end-making/filter cleaning/loading etc. devices are available, higher automation level. Technical specifications:
| Range of Application | Fiber length up to 76mm combed and carded cotton, chemical fiber and blends | |
| Number of Delivery | Single | |
| The highest output speed | 1000m/min | |
| Roller Dia. | Top Roller | ￠36 ￠36 ￠36mm |
| Bottom Roller | ￠40 ￠35 ￠35mm | |
| Drafting System | 3 over 3 double zone curvilinear drafting system with upholding pressure bar and guiding top-roller. | |
| Total Draft (between 1st and 3rd rollers) | Set by software (5~10) | |
| Can Size | Input | ￠400 ￠500 ￠600 ￠800mm Height 1100mm |
| Output | ￠400 ￠500mm Height 1100mm | |
| Feeding Form | Positive feeding overhead creel with pressure roller | |
| Main Motor | 3.5Kw | |
| Total Installed Capacity | 10Kw (6.5Kw) | |
Product components：
